| Max Speed (km/h) | 32km/h (20mph) (adjustable) |
| Range (km) | >100-120 (62.5-75miles) |
| Climbing Ability (%) | 0.25 |
| Battery | 73.6V105AH LFP lithium battery |
| Controller | plus USD500.00 |
| Dimensions (L×W×H mm) | 2520x1210x1890 (99x48x74in) |
| Seat Capacity | 2.0 |
| Loading Capacity (kg) | 270kgs (595lbs) |
| Charging Time (h) | 6-7hr |
| Wheels / Tires | 12×7 aluminum wheel + 215/50-12 belted radial tire |
| Brakes | ≤4m |
| Suspension | Front double wishbone independent and rear trailing arm+ shock absorber |
| Steering | Single-stage rack and pinion steering system, automatic rocker compensating function |
| Turning Radius (m) | 3.5 (137.8in) |
| Ground Clearance (mm) | 150 (5.9in) |
| Wheelbase (mm) | 1680 (66in) |
| Wheel Track (mm) | 975 (38in) |
| Body Material | PP plastic front body + PP plastic rear body |
| Roof | PP injection (Black) or vacuum plastic |
| Windshield | Organic glass Windshield, hinged, transparent, DOT approved |
| Lighting | All LED lights, 2 Front Light (each combines with H/L beam headlight, front turn signals, DRL), 2 Taillights( each combines 1 brake light with 1 turn signal), with DC-DC converter (converting from 72V to 12V), electric horn. |
| Meter / Display | PP plastic |
| Frame | Welded steel framework to be treated in galvanization and powder coating |
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 72V, 13/15A onboard |

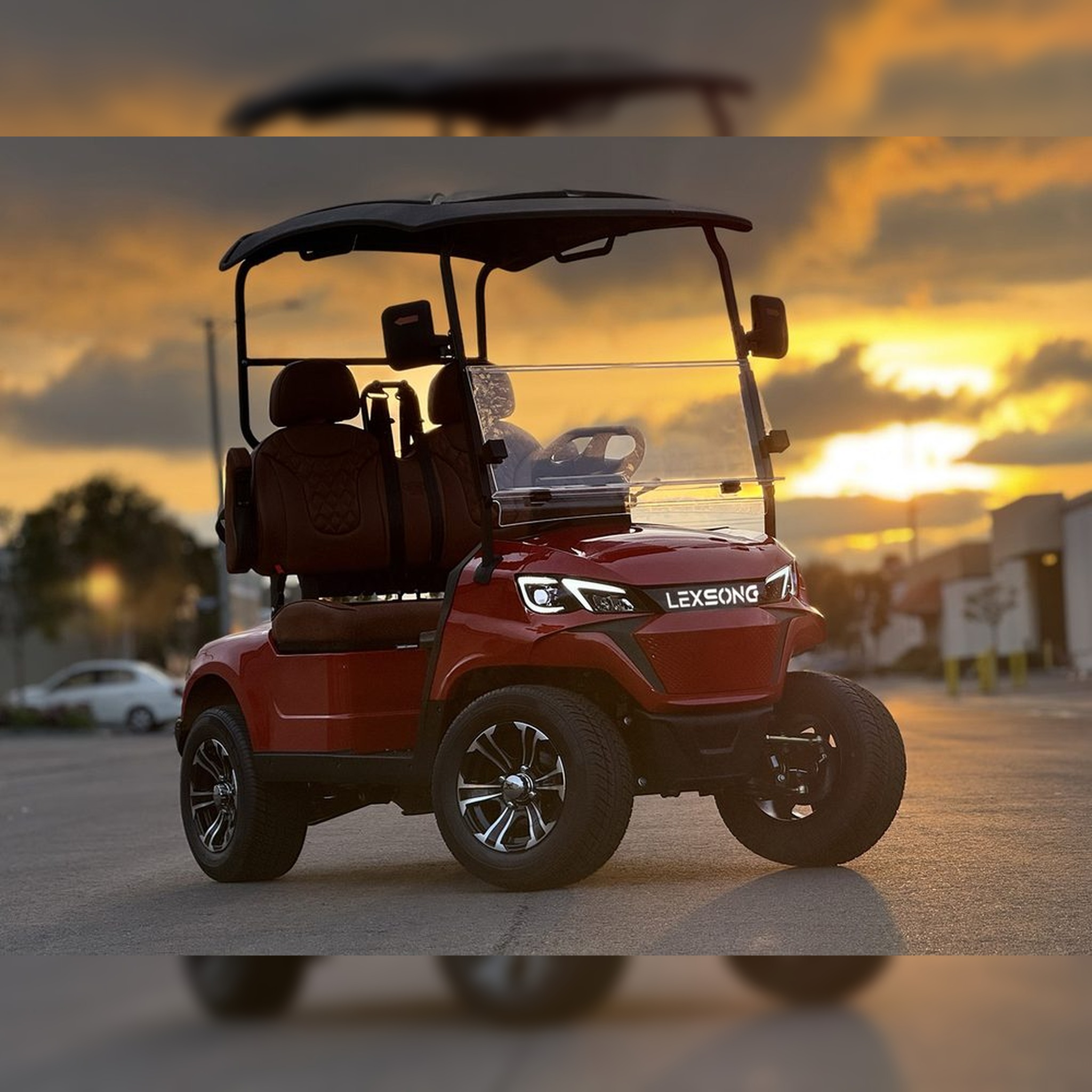

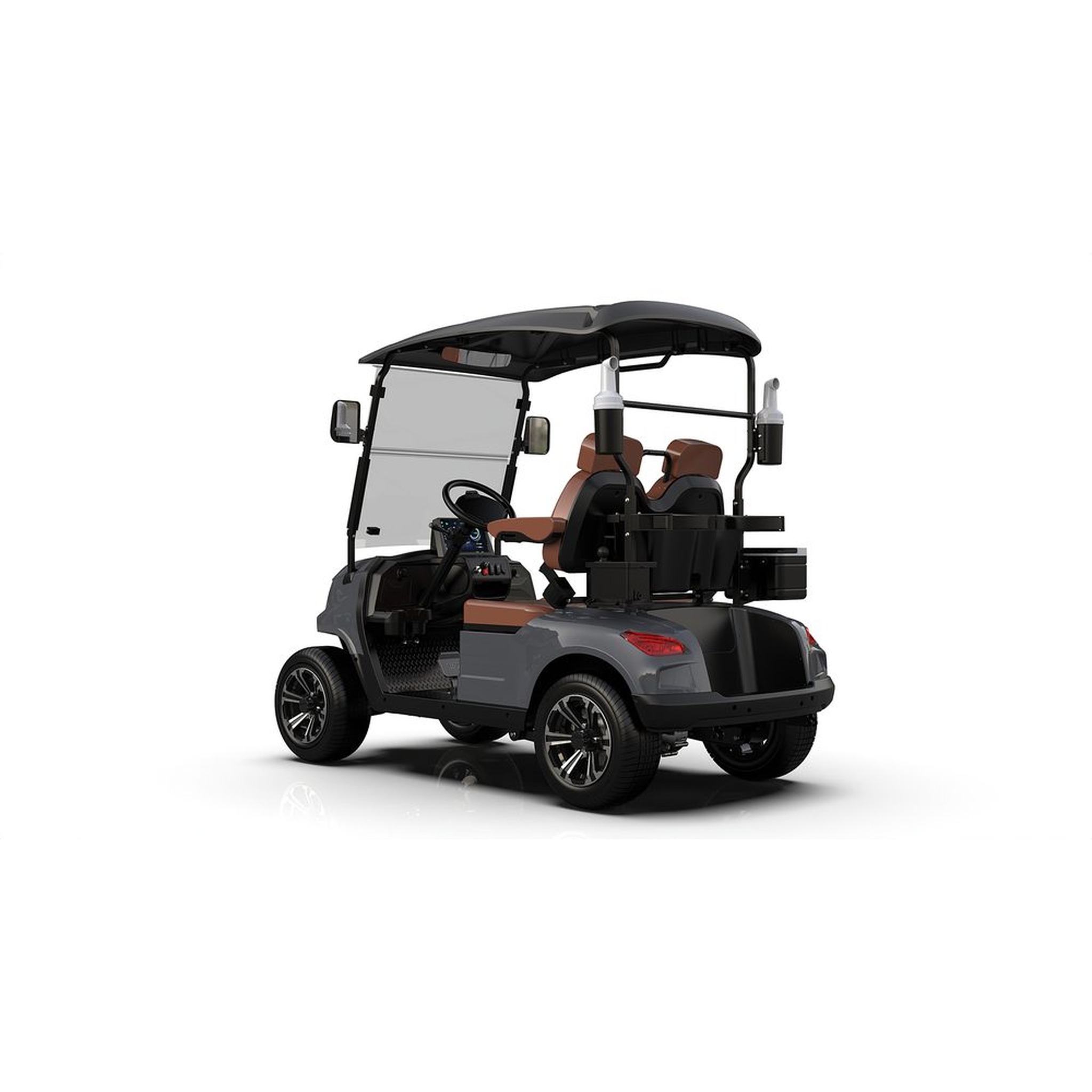

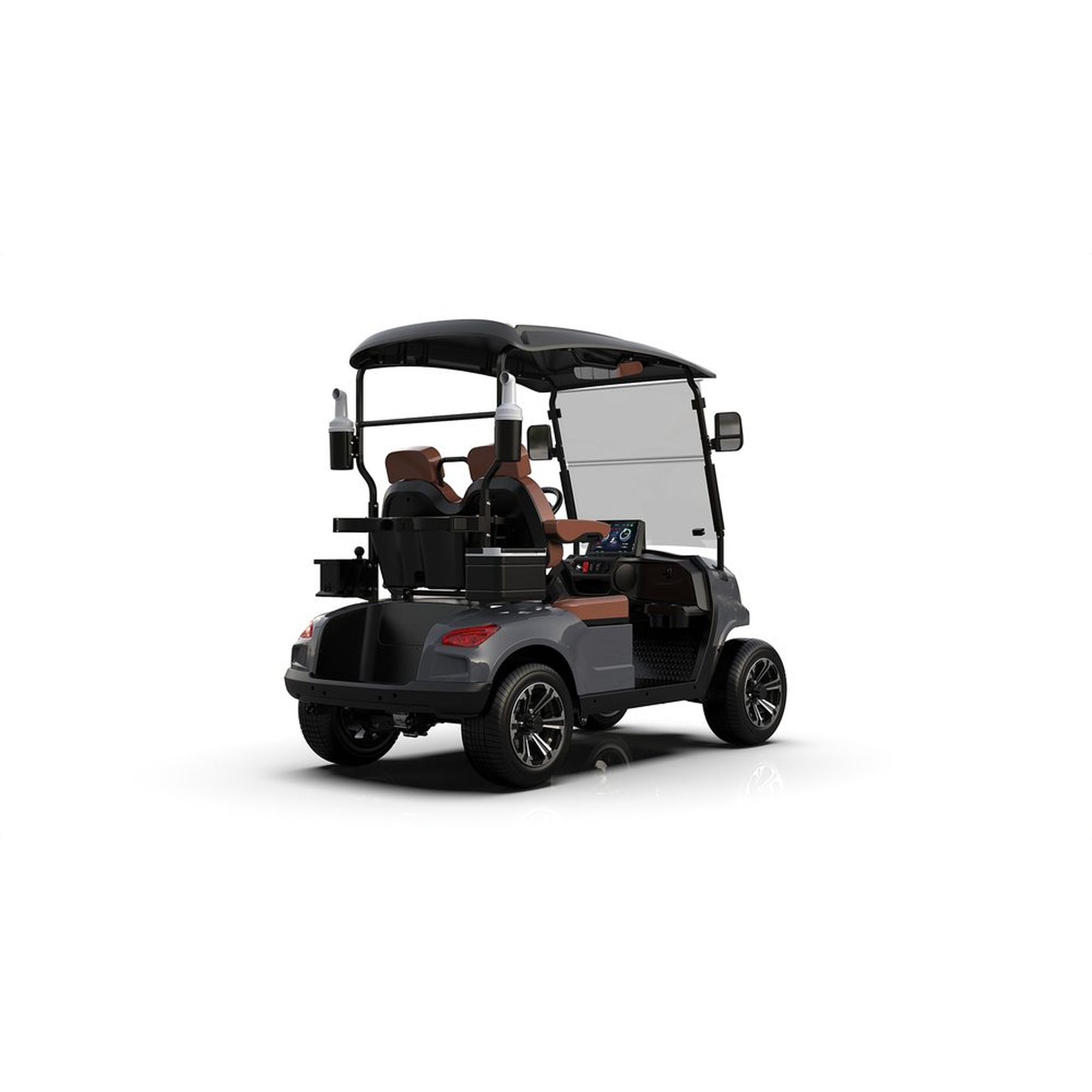

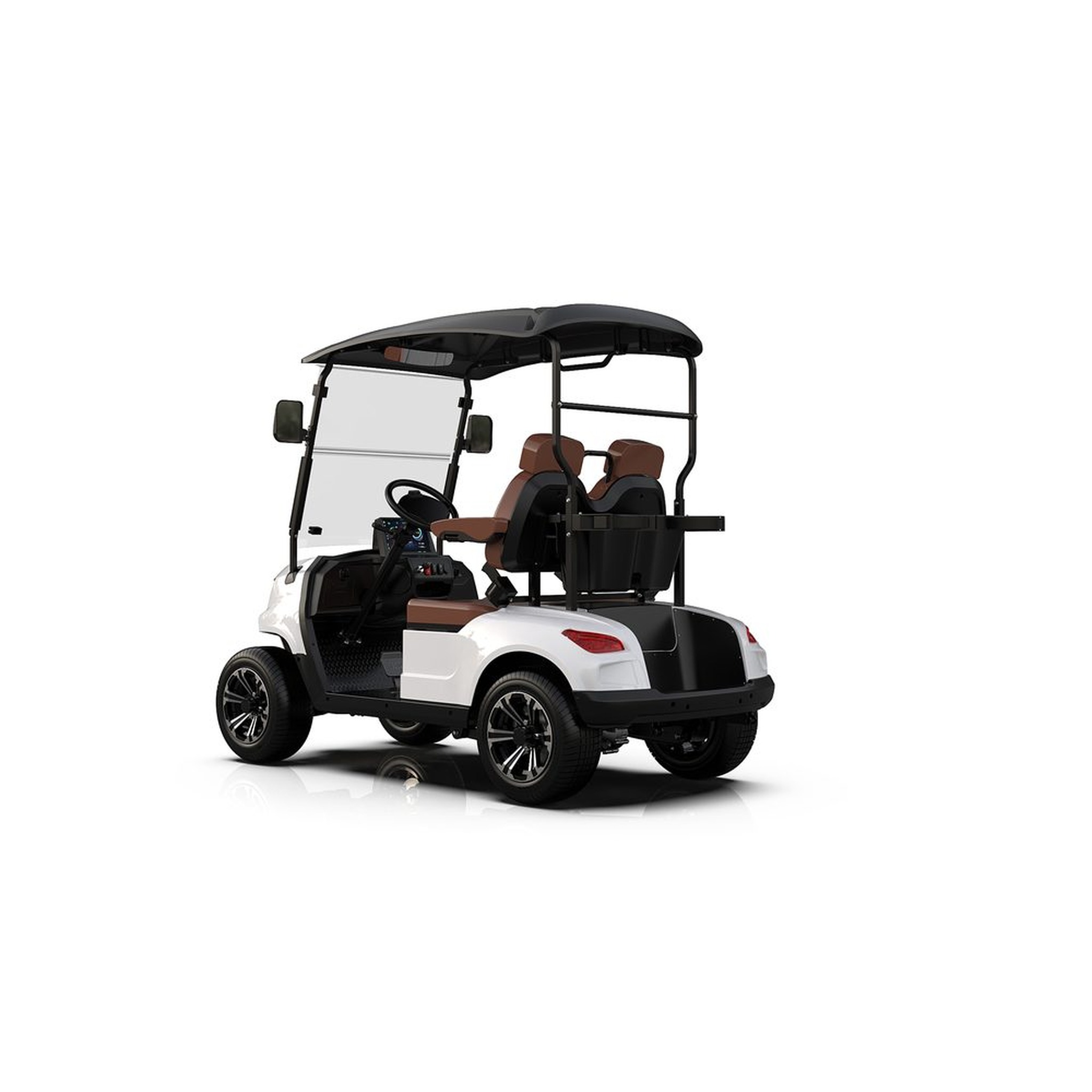

2-Seater Electric Golf Cart
2-Seater Electric Golf Cart — Model LS2023K. Factory direct from LEXSONG, Suzhou, China. Contact us for pricing.
Battery105Ah/150Ah
LFP Lithium
LFP Lithium
Motor5KW/7.5KW (6.7hp/10hp) AC
ControllerVanstar 400A
Max Speed24-48km/h
(15-30mph)
(15-30mph)
Range100-120km
(62.5-75mi)
(62.5-75mi)
Climbing25% (loaded)
Pearl White
Black Metallic
Champagne Metallic
Charcoal Grey Metallic
Moon Grey
Caribbean Blue
Red
Sangria Red Metallic
Features & Highlights

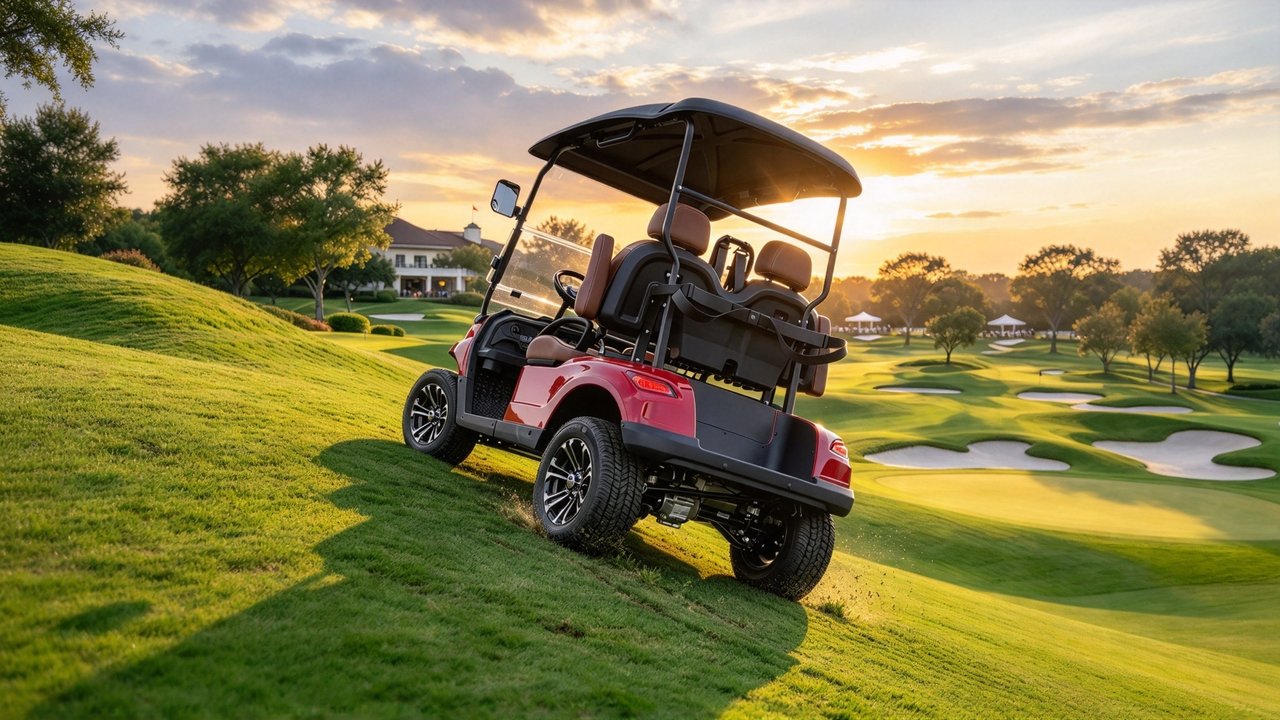

72V AC Drive System
Lexsong 72V golf cart with advanced 72V AC powertrain and 5KW (optional 7.5KW) motor delivers stronger acceleration, higher efficiency, low maintenance and smoother driving performance compared with traditional low-voltage systems.

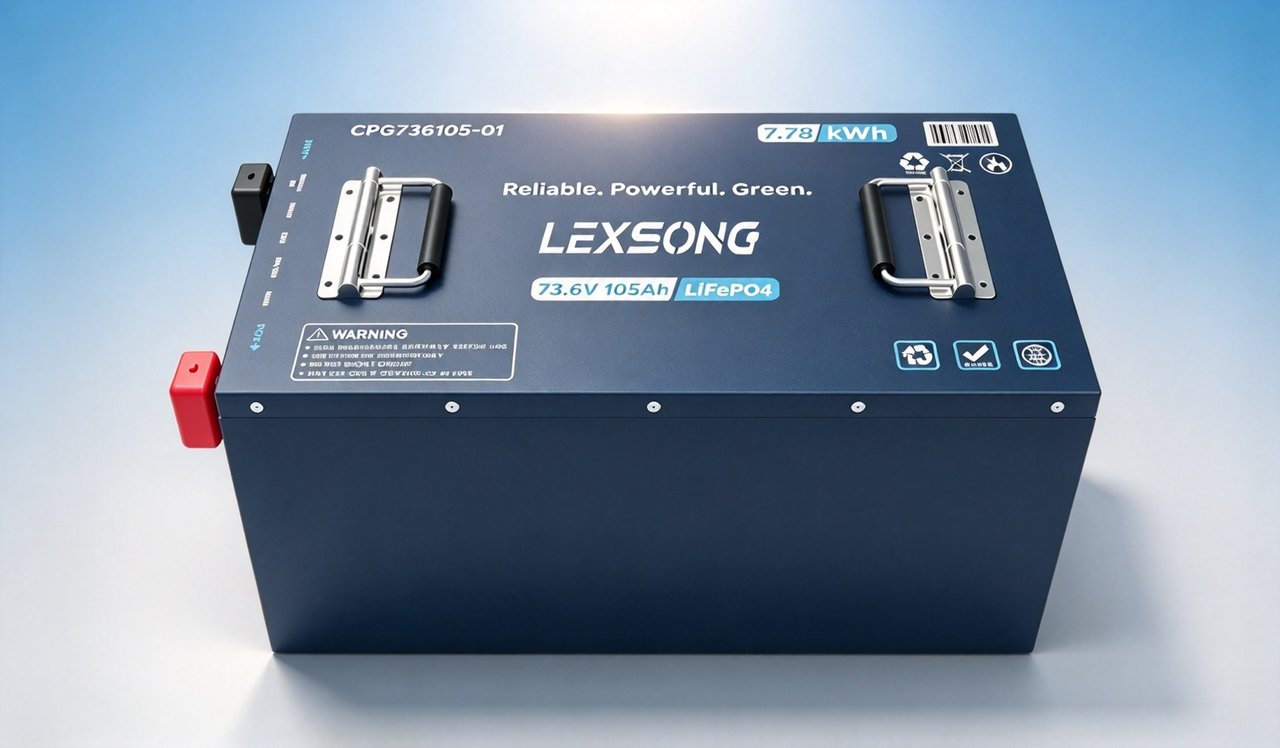

Lithium Battery Technology
Lexsong lithium golf cart with maintenance-free LFP lithium battery (73.6V105Ah or 73.6V150Ah) system provides longer service life, safety, faster charging and improved operating efficiency.

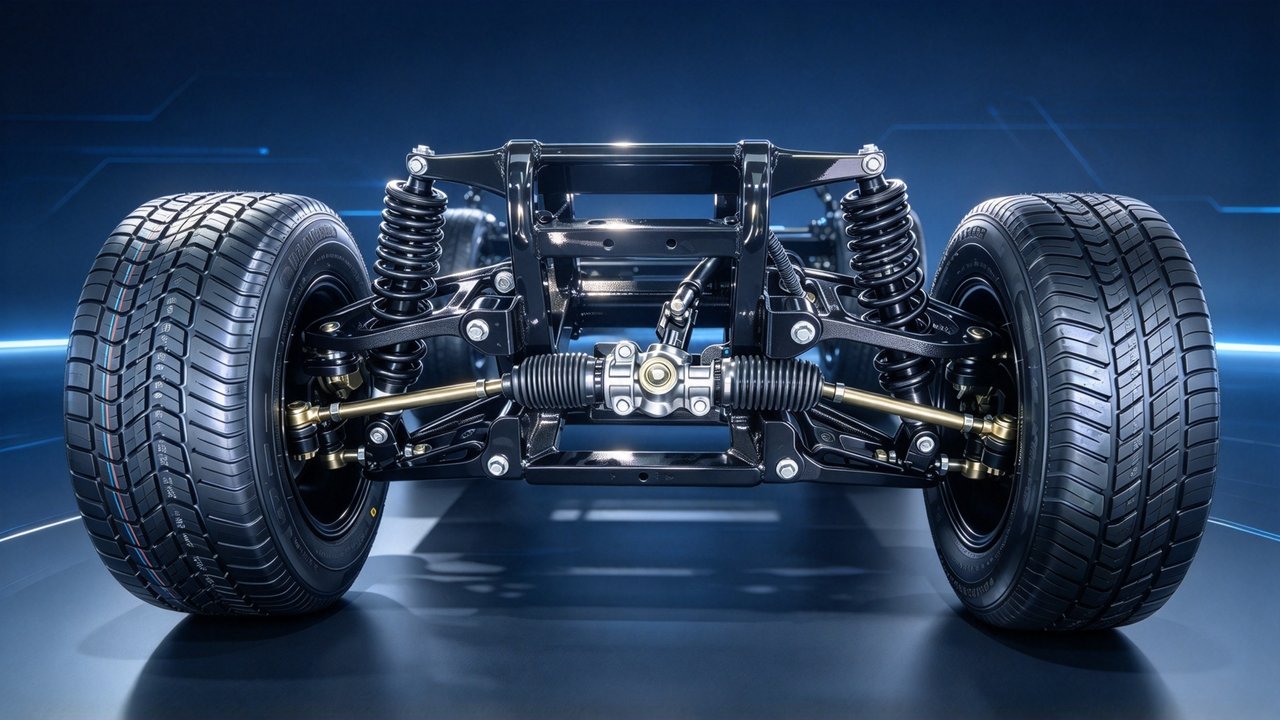

Double A-arm Independent Front Suspension
Double A-arm front independent suspension designed to improve ride comfort and vehicle stability across various operating environments.

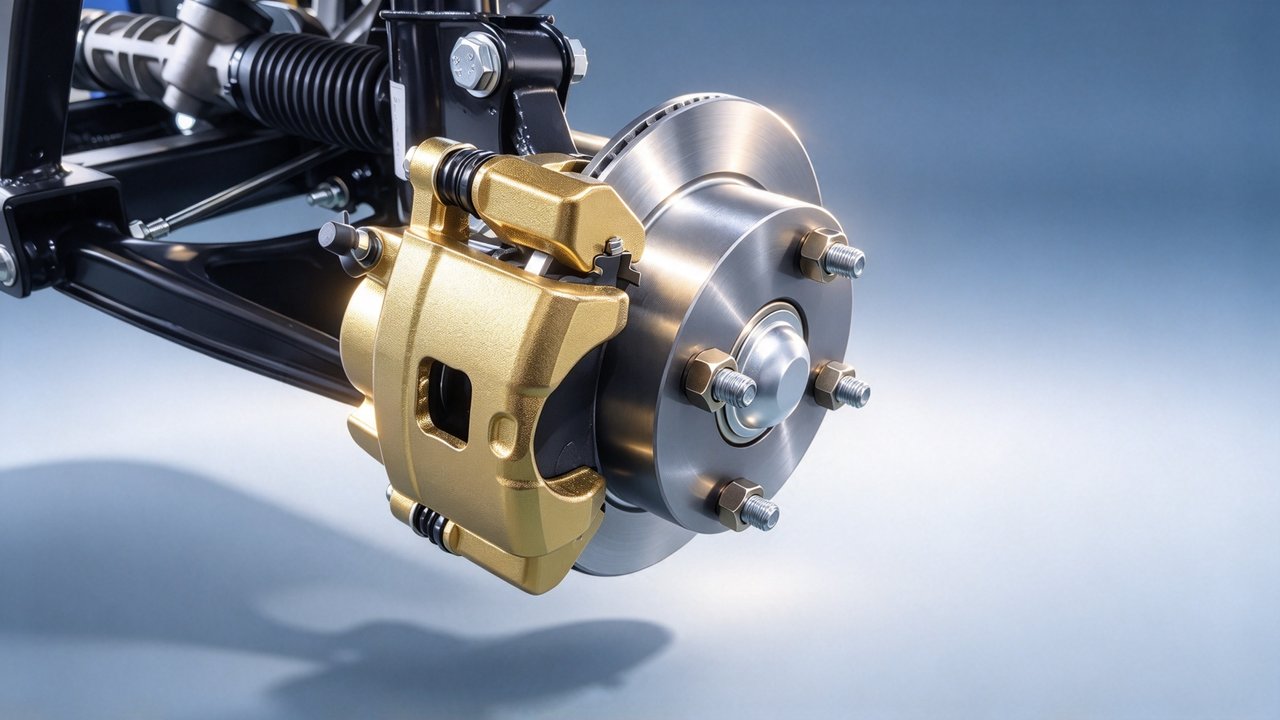

Four-Wheel Hydraulic Disc Brakes
Four-wheel hydraulic disc brakes with EM parking brake and regenerative braking provide shorter stopping distance and easier braking, enhanced vehicle control and improved safety for passengers and operators.

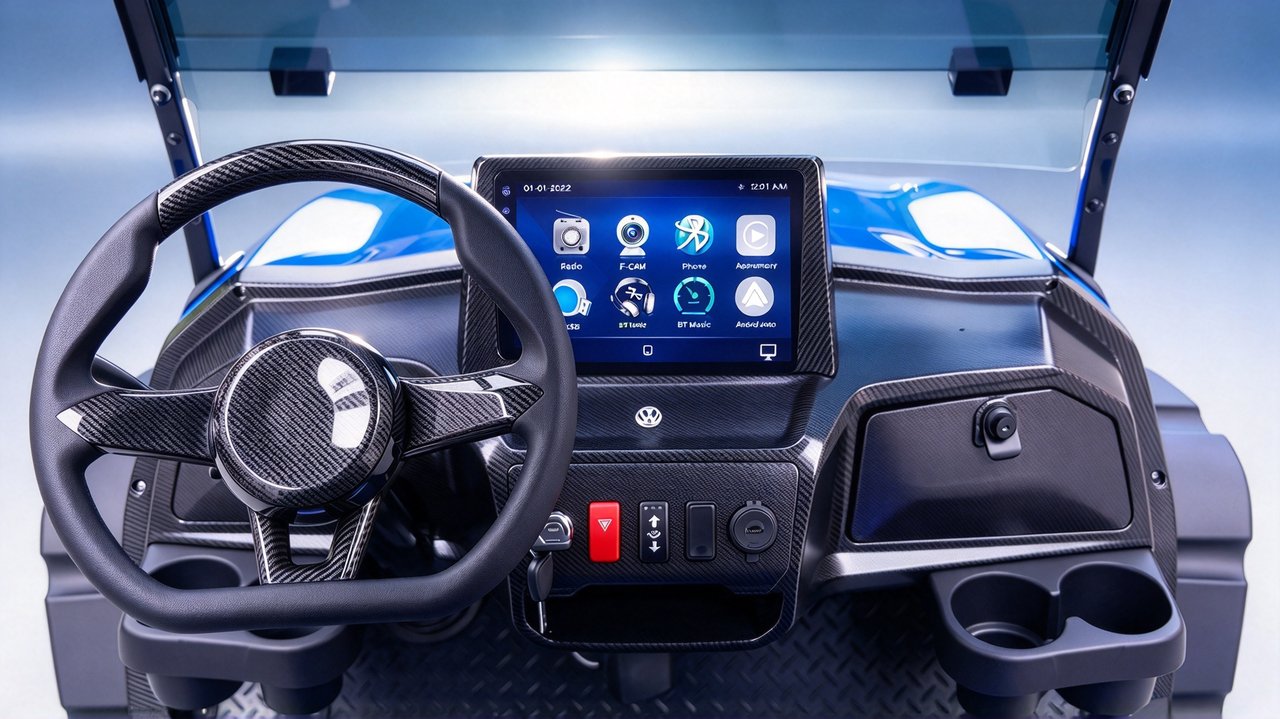

10.1" Smart Infotainment Display
The 10.1-inch touchscreen combines vehicle information and entertainment functions in one intuitive interface. Drivers can monitor vehicle status, stream music via Bluetooth, connect smartphones through Apple CarPlay or Android Auto, and enjoy multimedia content on the go.

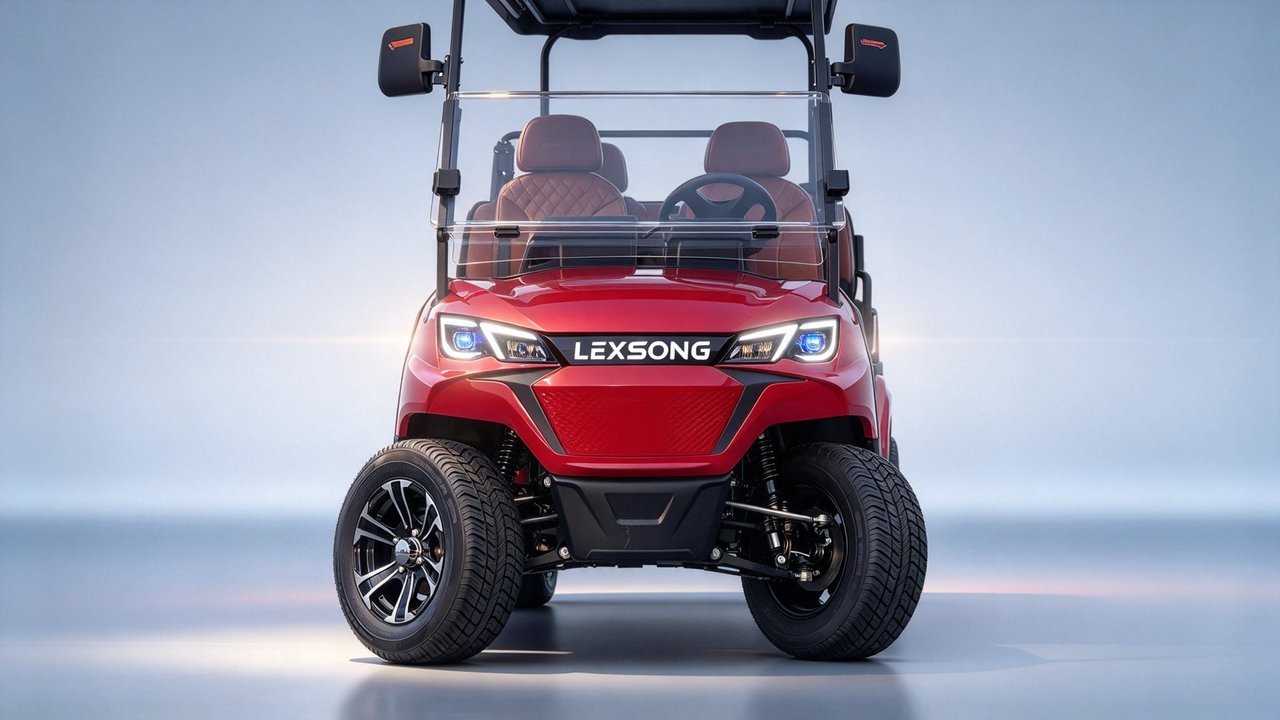

DOT-Approved LED Lighting System
Designed for improved visibility and safety, the LED lighting system includes high and low beam headlights, front and rear turn signals, brake lights and daytime running lights. DOT-approved components help meet road-use requirements in many markets while enhancing both vehicle appearance and driver confidence.
Technical Specification
Performance
| Max Speed | 32 km/h (20 mph), adjustable |
|---|---|
| Range | 100–120 km (62.5–75 miles) |
| Climbing Ability | 25% (loaded) |
| Loading Capacity | 270 kg (595 lbs) |
| Seat Capacity | 2 persons |
Dimensions
| Overall Dimensions (L×W×H) | 2520×1210×1890 mm (99×48×74 in) |
|---|---|
| Wheelbase | 1680 mm (66 in) |
| Wheel Track | 975 mm (38 in) |
| Turning Radius | 3.5 m (137.8 in) |
| Ground Clearance | 150 mm (5.9 in) |
Body and Frame
| Frame | Welded steel framework, galvanized and powder coated |
|---|---|
| Body Material | PP plastic front and rear body |
| Roof | PP injection (black) or vacuum plastic |
| Windshield | Organic glass, hinged, transparent, DOT approved |
| Wheels / Tires | 12×7 aluminum wheel + 215/50-12 belted radial tire |
Electric System
| Battery | 73.6V 105Ah LFP lithium battery |
|---|---|
| Controller | Vanstar 400A |
| Charger | Onboard, input 110V–240V~ 50/60Hz, output 72V 13/15A |
| Charging Time | 6–7 h |
| Lighting | All LED: H/L beam headlights, front & rear turn signals, DRL, taillights, brake lights, electric horn, 72V→12V DC-DC converter |
| Meter / Display | 10.1" Touchscreen |
Steering and Suspension
| Steering | Single-stage rack and pinion, automatic rocker compensating |
|---|---|
| Front Suspension | Double wishbone independent |
| Rear Suspension | Trailing arm with shock absorber |
| Brakes | ≤4 m stopping distance |
Optional Accessories

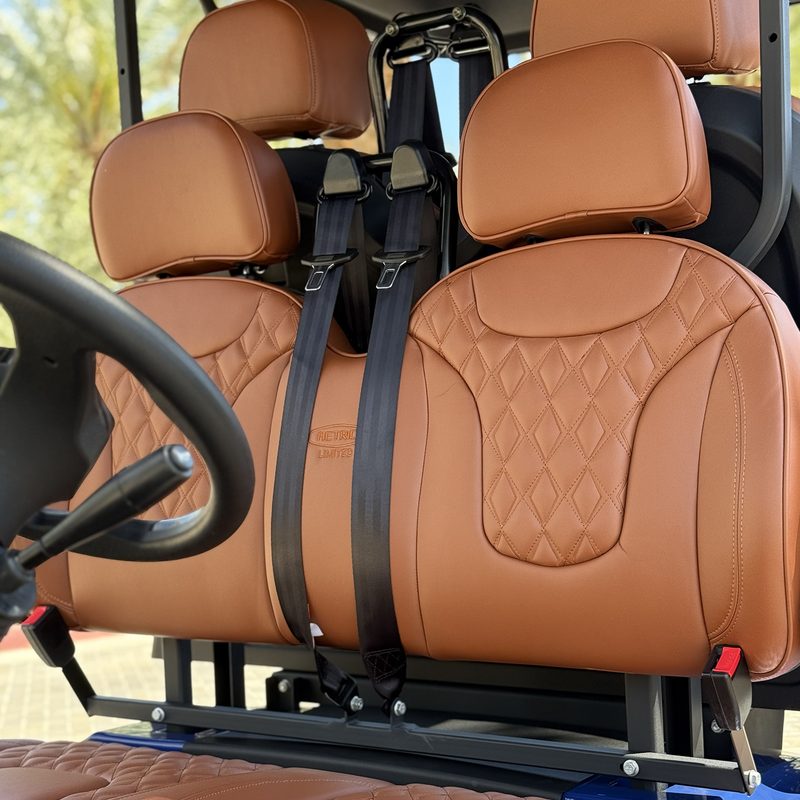

3-Point Seatbelt
Enhanced occupant restraint and safety on every ride.

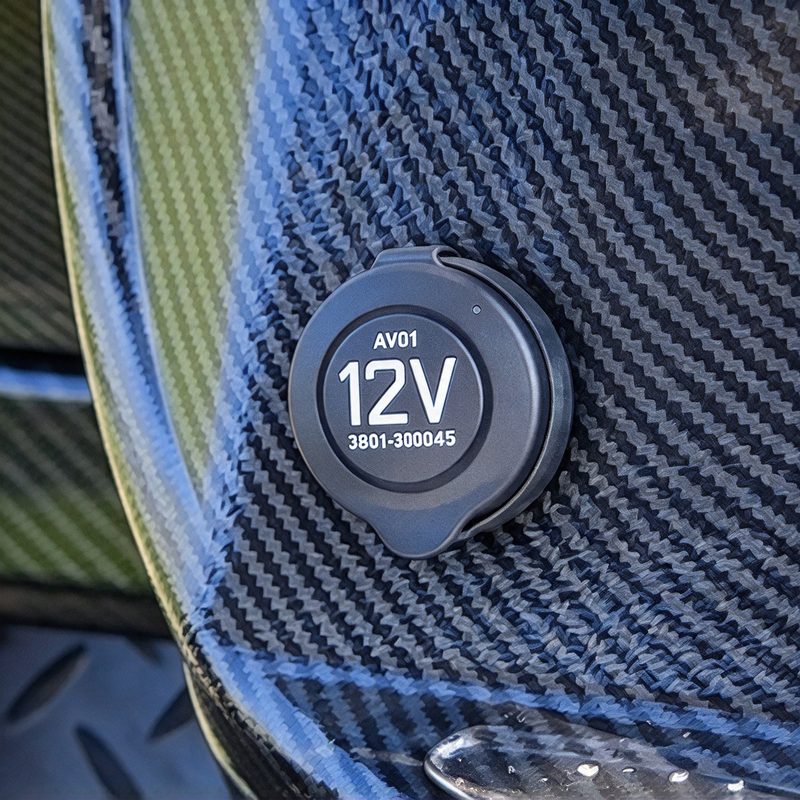

12V Plug
Convenient power outlet for chargers, phones and small devices.

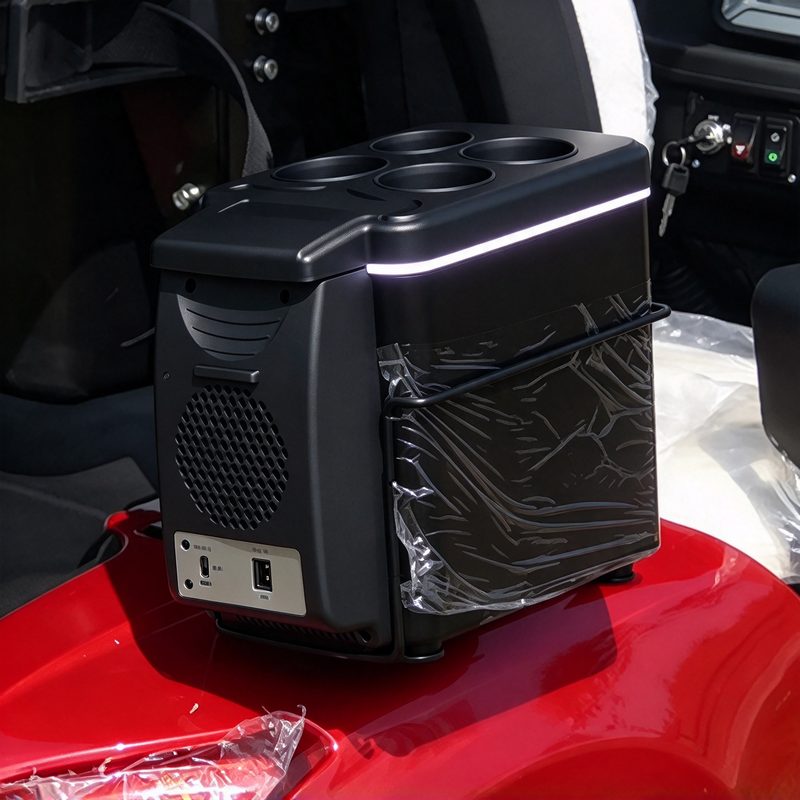

Cooler Box
Keep drinks and snacks chilled on longer journeys.
Golf Kit
Accessory package designed for golf course use.

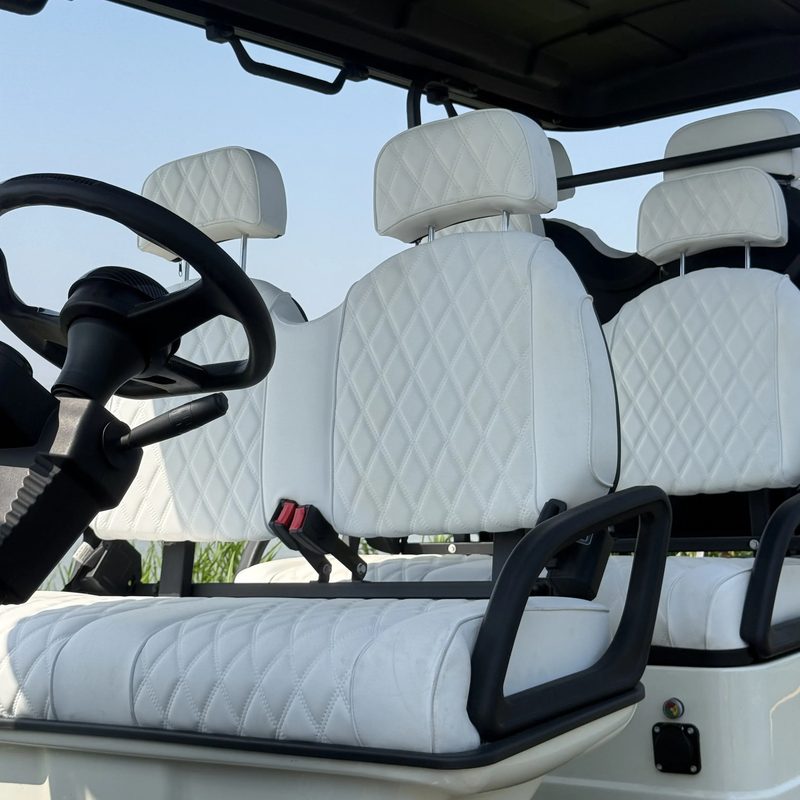

Headrest
Extra neck comfort and support for passengers.

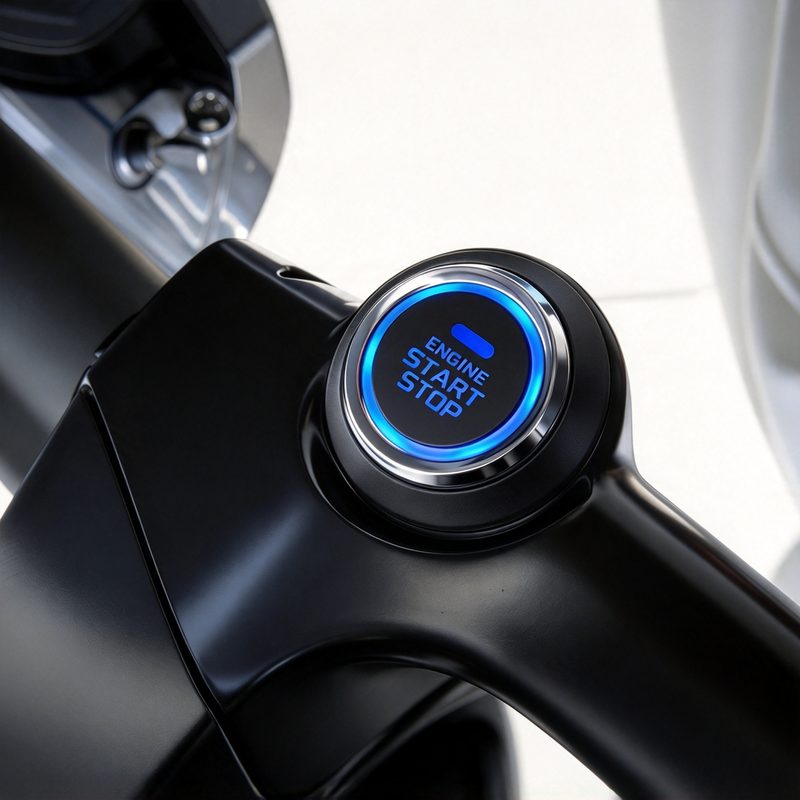

Push-to-Start Button
Keyless, one-touch start for daily convenience.

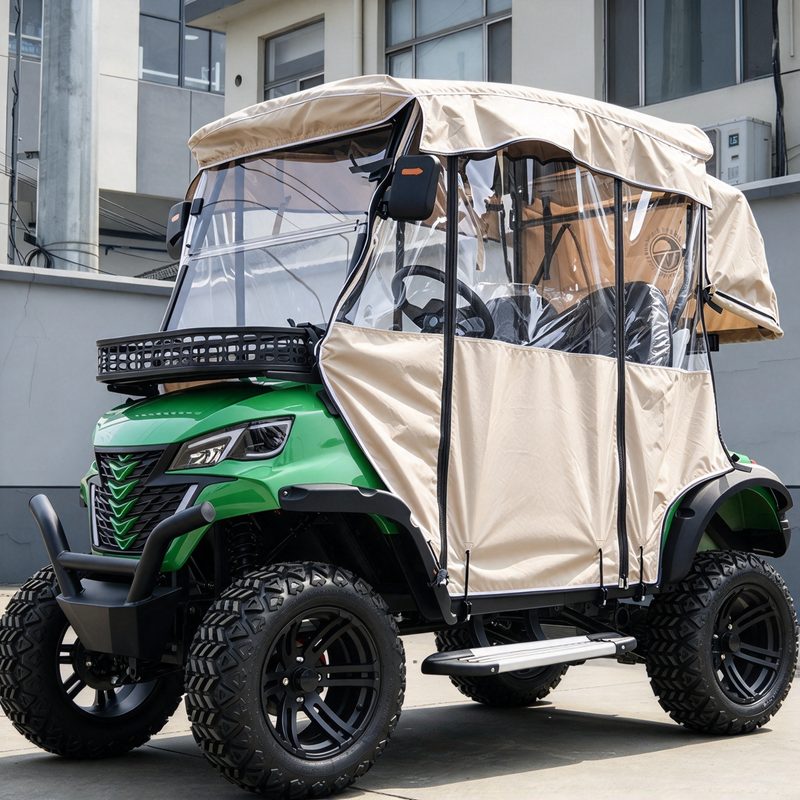

Rain Cover
Full protection when driving in rain, wind or dust.

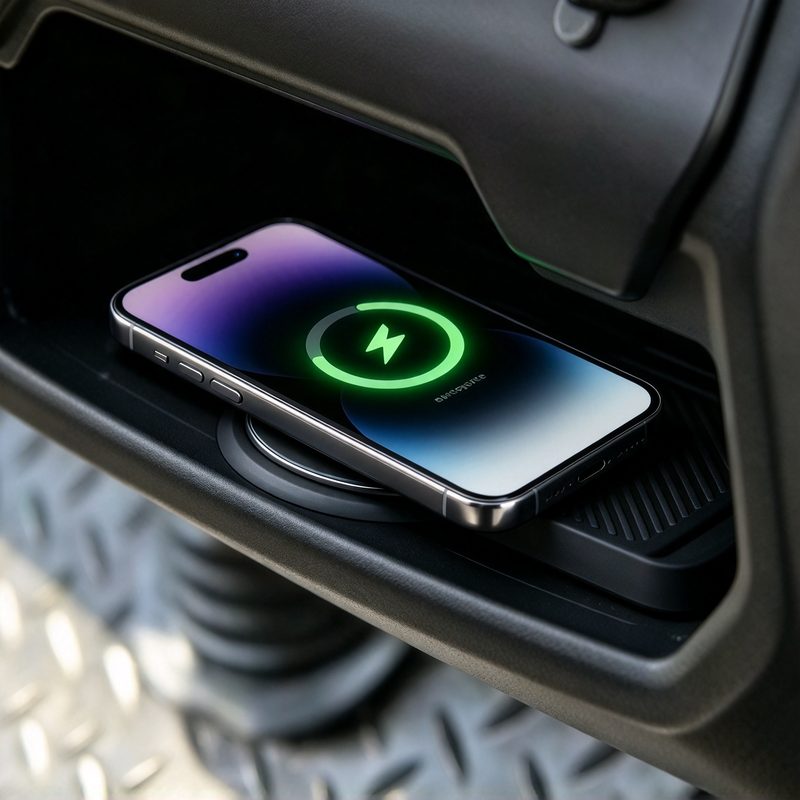

Wireless Charging
Cable-free charging pad for smartphones on board.
Applications
Golf Courses
Efficient course transport for players, staff and maintenance — from tee to green.
Resorts & Hotels
Quiet, zero-emission guest and service shuttles for hotels, resorts and villas.
Campuses & Communities
Clean, compact mobility for staff, security and maintenance on campuses and in communities.
Gated Communities & Personal Use
Comfortable everyday transport for gated communities, parks and private use.
